HTLNUZD Flysky FGr4B 4CH AFHDS 3 Receiver for RC Car Boat 2.4Ghz PWM/PPM/i-Bus/S.Bus/i-bus2 Output Compatible FS PL18 NB4 Lite NB4 Transmitter

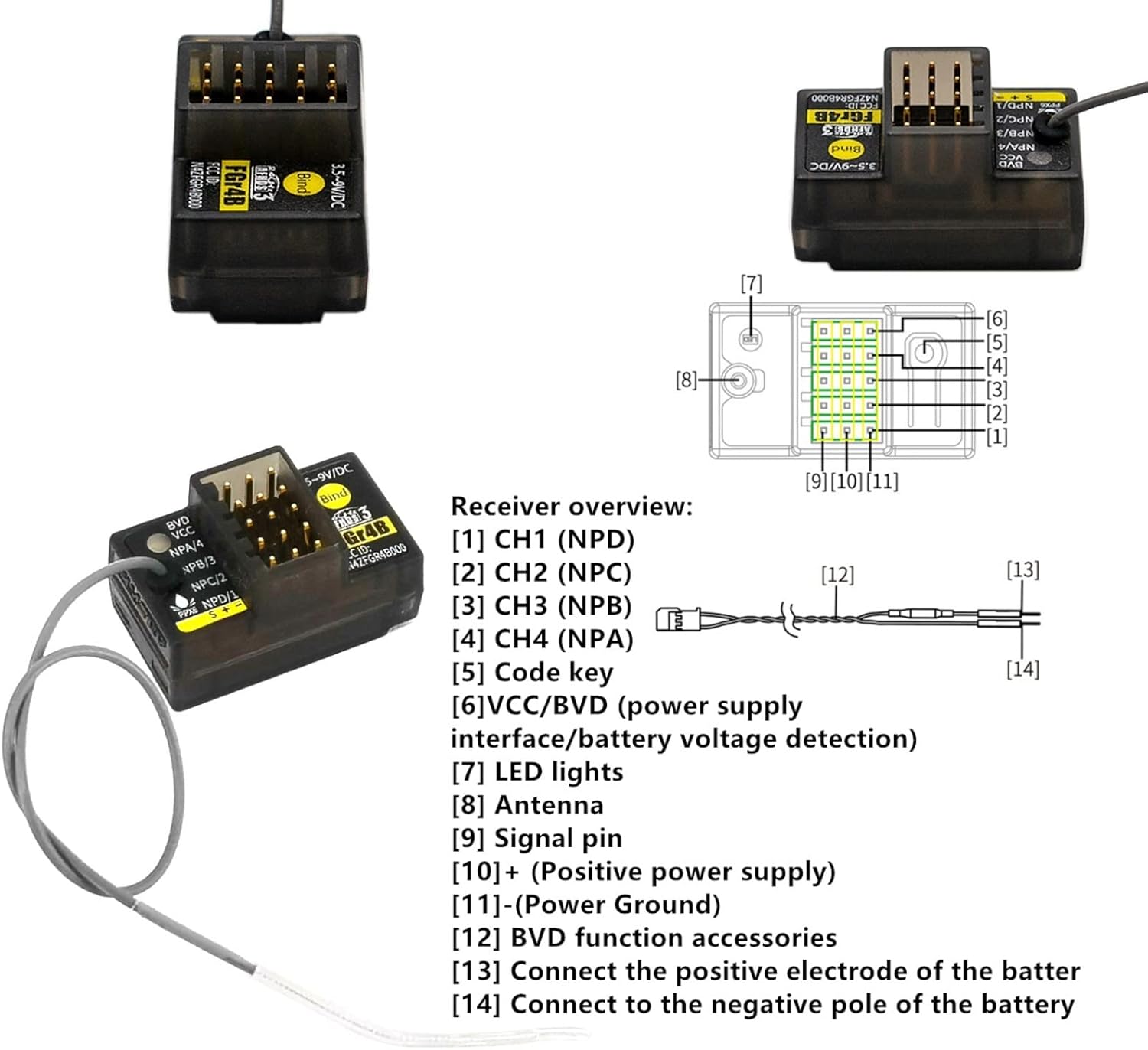

The FGr4B receiver is compatible with all AFHDS 3 transmitters (Note: It is currently applicable to PL18 1.0.55, NB4 2.0.93 and NB4 lite 1.0.10 and later versions. The high-frequency library used by the firmware is version 3.0).Binding ✔ Press and hold the receiver BIND button [5] while powering on the receiver, release the BIND button after receiver is powered on or powering on the receiver first, press and hold the BIND button 3 seconds , the LED [7] on the receiver will flash rapidly✔Put the transmitter into bind mode✔The binding process is complete when the LED on the receiver stops flashing and is on continuously.If a transmitter that has had its radio frequency (RF Standard) set to “AFHDS3 1 way” (please refer to your transmitter user manual) enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing and is on continuously, the binding process is complete.✔Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise.Product Designation: FGr4B Compatible transmitters:all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)Model Type: Car/boat etc PWM Channels: 4 RF: 2.4GHzProtocol: AFHDS 3 Antenna:Dual Antennas Input Power:3.5-9VData Output: PWM/PPM/i.BUS out/S.BUSTemperature Range: -10℃ to +60℃Humidity Limit: 20%-95%Online Update:YesDimensions: 17*29*16mm Weight: 6.4gPackage Included:1 x FGr4B Receiver

• 【Compatible transmitters】It supports all AFHDS3 transmitter.including FlySky PL18,NB4, NB4 Lite Transmitter.
• 【System settings】The FGr4B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).
• 【Antenna】Dual Antennas bidirectional transmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals.
• 【Small and easy to store】Compact size and light-weight design,easy installation, Whether it is going out to carry or storage storage, it is portable.
• 【The failsafe function】output the channel according to the out-of-control protection value set by the user after the receiver loses its signal and is out of control to protect the model and personnel.
