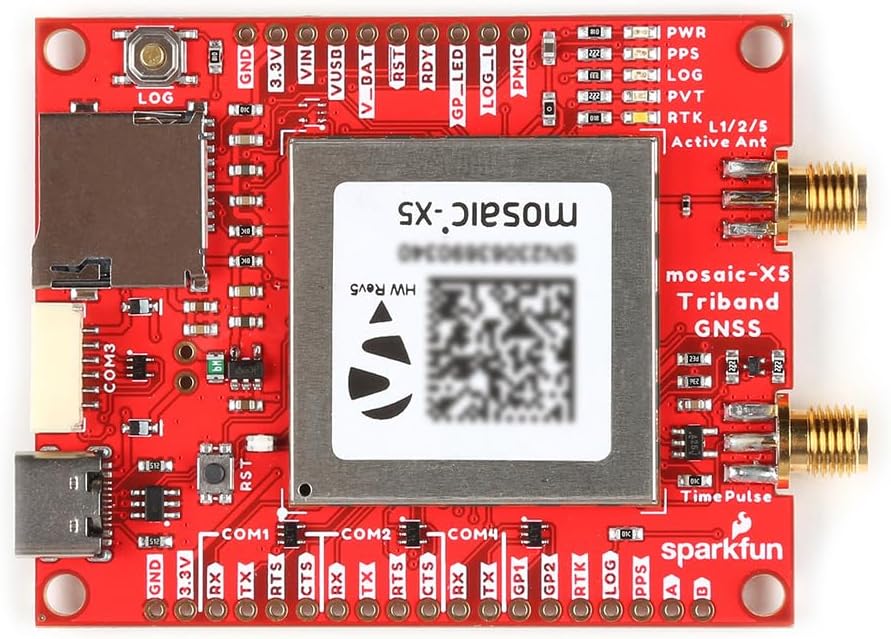

SparkFun Triband GNSS RTK Breakout - Mosaic-X5 high-Precision GNSS Receiver, with SD Capabilities and USB-2.0, MultiBand GPS Antenna, Board Dimensions: (Inches) 2.50 x 2.00

We see new iterations with GNSS with each passing year, and with the SparkFun mosaic-X5 Triband GNSS RTK Breakout, you'll be provided with the easiest way to start using L1, L2, and L5 bands simultaneously! At the heart of the Triband GNSS RTK Breakout is Septentrio's most compact high-precision GNSS receiver, the mosaic-X5. The mosaic-X5 module is an ultra-low power, multi-band, multi-constellation GNSS receiver capable of delivering centimeter-level precision at high update rates. The receiver supports the GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India) constellations, including regional systems (i.e. SBAS and QZSS). It also features Septentrio's unique AIM+ technology for interference mitigation and anti-spoofing, ensuring best-in-class reliability and scalable position accuracy. With its Real Time Kinematics (RTK) capabilities, the mosaic-X5 module can operate as a base station to broadcast RTK correction data or as a rover utilizing RTK correction data to record positions with extreme precision. The module can achieve a horizontal accuracy of 6mm (~0.25in), vertical accuracy of 1cm (~0.4in) using RTK, and timing precision of 5ns (5 billionths of a second). The mosaic-X5 is compatible with RTK correction data from various 3rd-party services. The mosaic-X5 can also deliver position updates at 100Hz (100 times per second) for automotive and industrial applications. The mosaic-X5 is a sophisticated chip running an internal web server that can be accessed through the USB interface with a standard browser using a Linux/Windows computer. Septentrio also provides dozens of video tutorials to guide users through the configuration settings of their GNSS receivers utilizing the web interface. In addition to the module's web interface, Septentrio provides software packages where users can post-process recorded data, configure the mosaic-X5 module, and analyze the receiver's performance or the GNSS signals for interference/spoofing. If these interface options weren't enough, Septentrio's GNSS modules are compatible with other 3rd-party software packages.

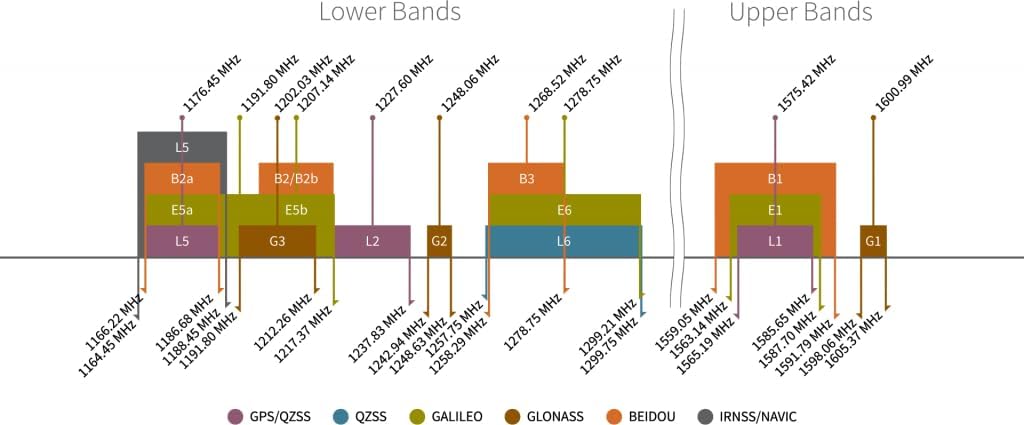

• Simultaneously use L1, L2, and L5 GPS bands: Easiest way to get started; Supports the GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India) constellations, including regional systems (i.e. SBAS and QZSS)
• GNSS receiver: Ultra-low power, multi-band, multi-constellation board capable of delivering centimeter-level precision; High update rates
• Reat Time Kinematics (RTK): Operate as a base station: Broadcast RTK correction data; Or as a rover: Utilizing RTK correction data record positions with extreme precision
• Features: mosaic-X5 GNSS Receiver; USB-C Connector; µSD Card Slot (up to 32 GB w/ FAT32 file system); SMA Connectors; GPS Antenna (Active, Multi-band); PPS Output (3.3 V); UART (x4); USB 2.0; SD Card; GPIO/LEDs
• Note: Multi-band capabilites of the mosaic-X5 module; we highly recommend that users pair the module with a suitable GNSS antenna that can support all the GNSS frequency bands the module is compatible with
