UTEK UT-820E USB to 422/485 Vonverter(1-Port USB to RS-485/422 Serial Converter with ESD Protection)

UT-820E is a universal USB to RS-485/422 converter which with built-in optoelectronic isolator and DC/DC power isolated module; external power is not necessary. It complies with USB and RS-485/422 standards; it converts single side USB signal to a balanced differential RS-422 or RS-485 signal. The built-in optoelectronic isolator can provide as high as 2,500Vrm isolated voltage; the fast instant voltage restraint is designed to protect RS-422/RS-485 interface; it adopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint; normally, TVS tube is in high impedance state; when both sides of TVS tube suffer from high power impact in a sudden, the voltage restraint will fast lower the impedance from both sides, and absorb in big current; with this, the voltage on both sides are fixed at presupposed value, protects the component of circuit from damage. This voltage restraint provides 1500W each wire with lightning and ESD protection, and surge voltage and instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports. RS-485/422 port adopts RJ45 or DB9 male as connector. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play. It is compatible with current communication software and hardware. UT-820E optoelectronic converter supports point to point, point to multipoint communication; for point to multipoint, it can be connected with 128 RS-422 or RS-485 devices, the baudrate is 300-460800bps; the power and data flow indicators show the status of the communication. Transmission distance: 0-5,000m （128,000bps-9,600bps） ● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux

• Standards: EIA RS-485/422, USB V1.1, compatible with V2.0 ● USB signal： VCC、DATA+、DATA-、GND、FG
• RS-485 signal：T+、T-、GND ● RS-422 signal：T+、T-、R+、R-、GND ● Working mode: asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
• Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control ● Baudrate ：300-128000bps，auto detection
• Overload capacity: Supports point to multipoint, max. allows to connect with 128 RS-422/485 devices ● Transmission distance: RS-485/422: 5000m(9600bps)，USB: no more than 5m ● Port protection: 1500W lightning, surge protection, ±15KV ESD protection

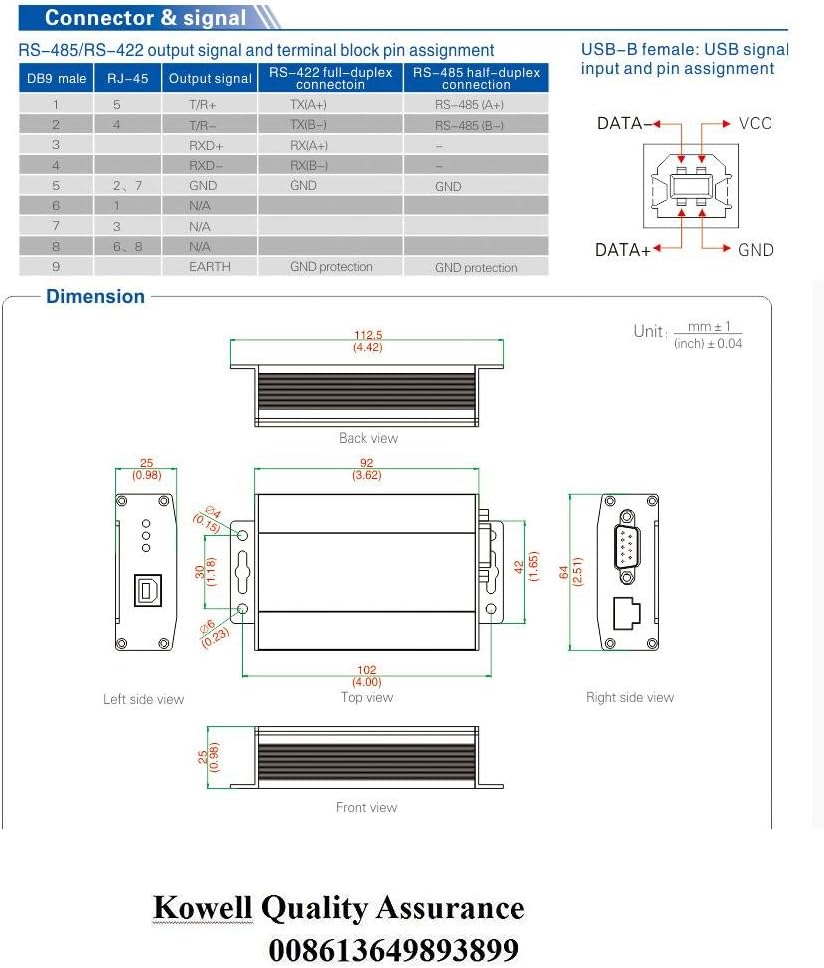

• Ports: USB-B female，RJ-45 and DB9 male ● Indicator: PWR, TXD, RXD ● Transmission media: Twisted pair or shielded cable ● Transmission rate：128,000bps to 300m, 38,400bps to 2.4Km, 9,600bps to 5km
