VSDISPLAY 5.6" 1024X600 LCD Screen 5.6 inch LTD056ET3A with VGA 2AV LCD Controller Board VS-TY2662-V1
4.6 (81 items)
Limited Time SaleUS$41.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209105326 | Release Date | 2026/03/29 | List Price | US$27.60 | Model Number | 209105326 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Controller Board: VGA 2AV LCD Board Work for LVDS Interface LCD Screen50Pin TTL Connector for 7inch~10.1inch LCD ScreenInput Power Adapter:12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGA AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:91mm x 66mm x 12mm5.6" LTD056ET3A 1024X600 LCD Screen:Display Mode TN, Normally White, TransmissiveResolution 1024(RGB)×600Outline Size 136.8 × 85.9×4.9 (H×V×D)Display Area 122.88 × 72 (H×V) Brightness 300 cd/m² (Typ.)Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6-bit) , 25 pins , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA+2AV LCD Controller Board VS-TY2662-V11× 5.6inch LTD056ET3A 1024X600 LCD Screen1× Converter Board1× LVDS Cable1× Keyboard With Cable
- 5.6" LTD056ET3A 1024X600 LCD Screen: Resolution 1024(RGB)×600 Outline Size 136.8 × 85.9×4.9 (H×V×D) Display Area 122.88 × 72 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector.

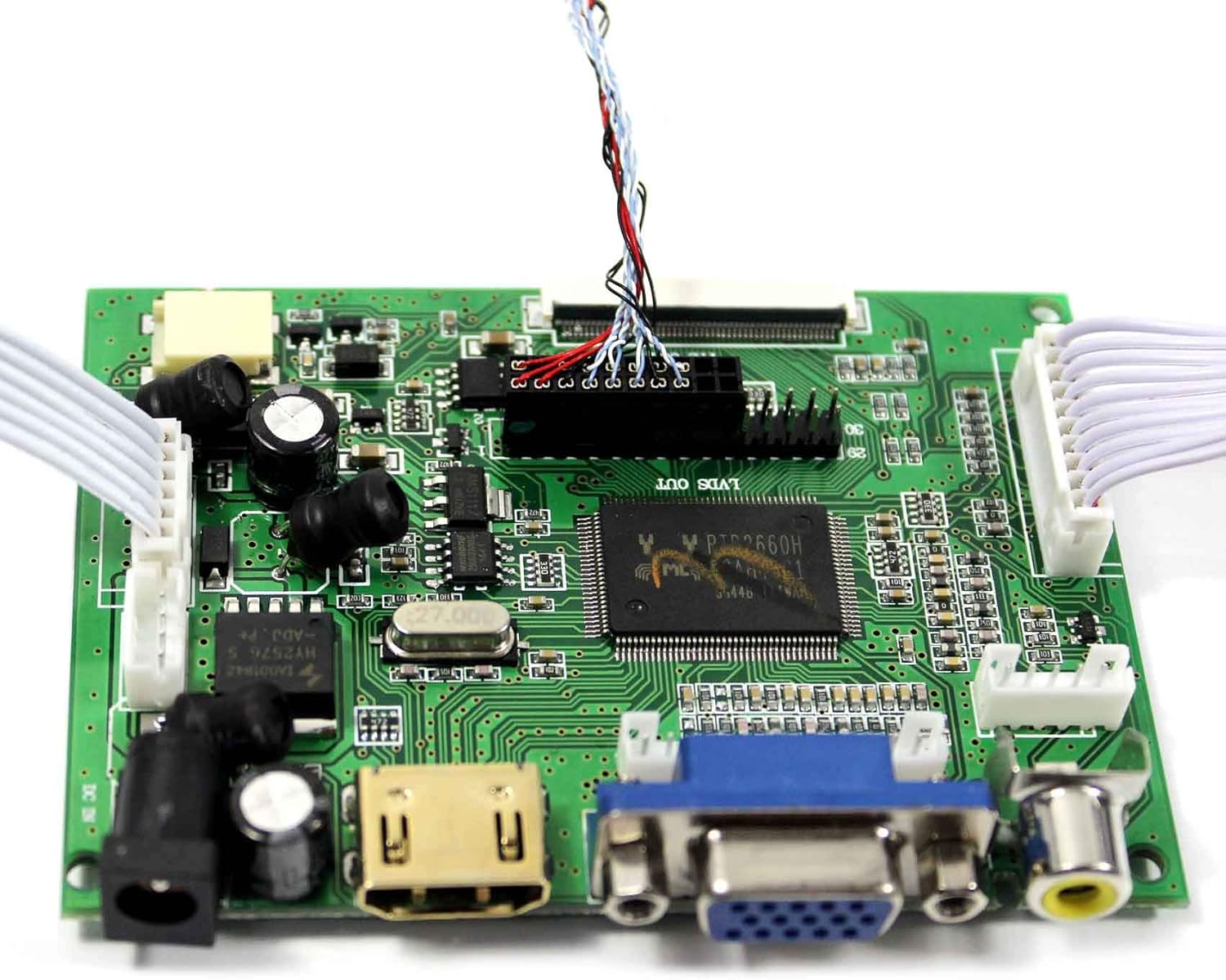

- VGA 2AV LCD Board Work for LVDS Interface LCD Screen. 50Pin TTL Connector for 7inch~10.1inch LCD Screen.
- Video Input: VGA AV1 AV2. Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V.
- Recommend Power Adapter Spec. Input Power Adapter:12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board) Come In Standby Model When Not Input Signal. Standby Model <1W.

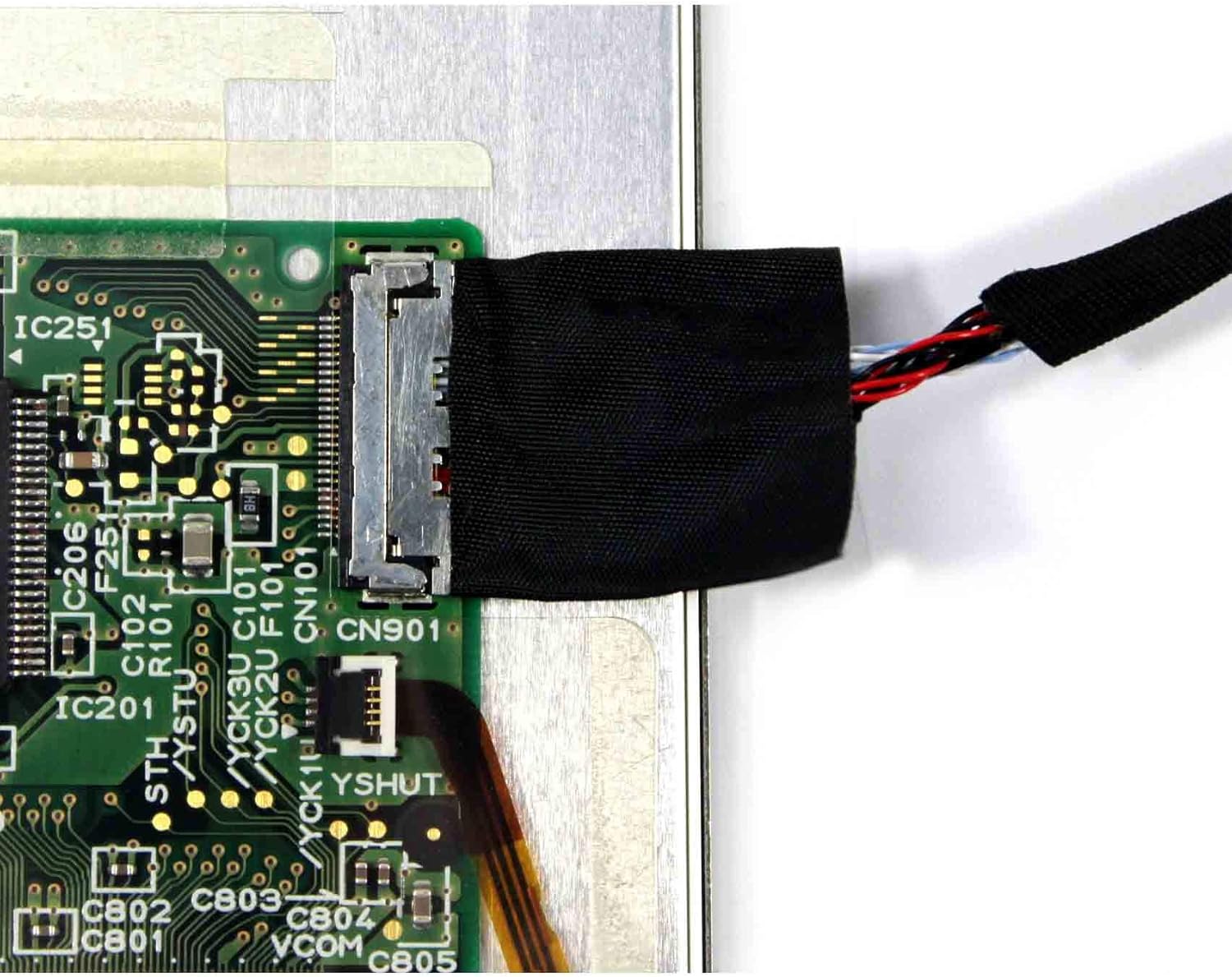

- Packing list : 1× VGA+2AV LCD Controller Board VS-TY2662-V1 1× 5.6inch LTD056ET3A 1024X600 LCD Screen 1× Converter Board 1× LVDS Cable 1× Keyboard With Cable (Please Notice There is No Power Adapter in The Packing List.)
| UPC | 601285645445 |
|---|---|
| Brand | VSDISPLAY |
| Voltage | 12 Volts |
| Brightness | 300 cd/m² |
| Model Name | LTD056ET3A |
| Resolution | SVGA Wide |
| Screen Size | 10.1 Inches |
| Aspect Ratio | 1.71:1 |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Model Number | LTD056ET3A |
| Screen Finish | Glossy |
| Viewing Angle | 75 Degrees |
| Contrast Ratio | 400:1 |
| Has Color Screen | Yes |
| Native Resolution | 1024x600 |
| Display Technology | LCD |
| Additional Features | Blue Light Filter |
| Hardware Connectivity | Unknown |
| Display Resolution Maximum | 1024 x 600 |
